Appendix 6 Trawl of UK Academic Libraries

This appendix is based on an article originally published on the web. See <URL: http://www.ukoln.ac.uk/web-focus/webwatch/reports/hei-lib-may1998/ >.

This trawl took place in May 1998.

A Survey of UK Academic Library Web Sites

In May 1988, the WebWatch robot 'watched' UK University and College library web sites. This report contains an analysis of the data obtained from this web community.

A list maintained by NISS [1] provided entry-point URLs for 99 library sites. From these we were able to analyse 81 sites, some sites from the list were not analysed for reasons explained later. The analysis included looking at HTML and image resources and the HTTP headers associated with them. Resources will refer to HTML and images unless otherwise specified.

The data collected was processed with various Perl scripts into a form suitable for subsequent analysis with Excel and SPSS.

Analysis

Resources Collected

The summaries are of HTML and image resources and are based on the contents of 81 sites. A total of 122Mb of HTML pages representing 17,580 files and 115Mb of image data representing 14,277 images was analysed.

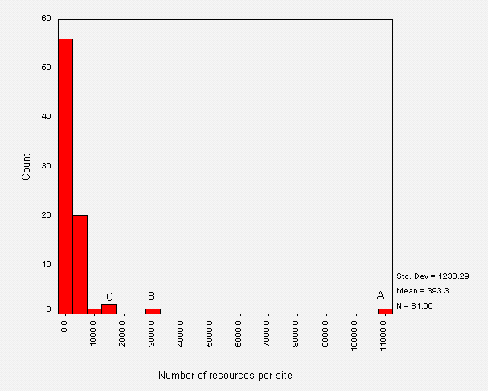

Figure A6-1 shows the distribution of number of resources per site.

Note that a majority of sites have less than 2,000 resources under the initial path. The mean number of resources per site is around 393 and the most frequent number of resources is contained within the range 0-500. The outliers in Figure A6-1 are looked at further on.

The robot only follows resources available via hyperlinks from the entry point and so the summaries represent a users-view of the site. Any resources disallowed under the robots exclusion protocol would not be summarised (although 78% of sites (63) did not have a /robots.txt file). In total, 31,935 URLs were traversed. The domain names of these URLs correspond to the particular academic institution. The URL of most of the sites entered into the robots input file implied that the library shared space on a web server. In such a case, the robot based its traversal on remaining within the directory-path of the entry-point URL. For example, the site http://www.bath.ac.uk/Library/ would be summarised for resources underneath /Library/. This applies to inline resources also, for example, a library site may include an image from a server-wide directory of images that would not be summarised.

Around 10% of the input URLs implied that the library site ran on its own server (though this could physically share a machine). These are shown in Figure A6-2.

www.lib.cam.ac.uk

www.lib.uea.ac.uk

libwww.essex.ac.uk

libweb.lancs.ac.uk

libweb.lancs.ac.uk

rylibweb.man.ac.uk

oulib1.open.ac.uk

www.lib.ox.ac.uk

www.library.sunderland.ac.uk

www.lib.ed.ac.uk

www-library.st-and.ac.uk

www.lib.strath.ac.uk

libweb.uwic.ac.uk

Figure A6-2 - Servers Dedicated to Library Information

Resource Sizes and Frequencies

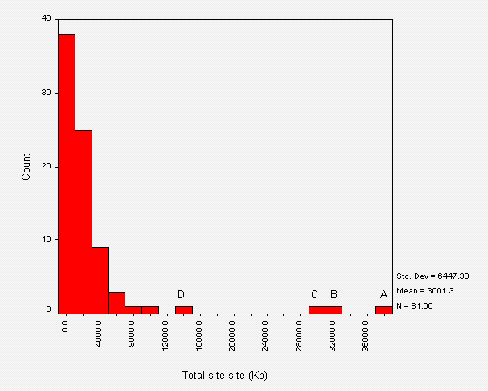

Figure A6-2 shows the distribution of total size of site.

Figure A6-3 initially shows an unbroken decay, which corresponds to the majority of sites. Further on there are four disconnected bars, the larger three of these contain significantly more content. The largest site analysed (labelled A in Figure A6-3), is at the University of Salford. It is 39,039Kb (38Mb). This site shares space on the institution's main web server and contains a wide range of information services material (including IT information). Site B is at the University of Aston and has size 31,137Kb (30Mb). This site contains general library and information material. This site is on a shared server and is merged with the institution's IT information point. The third outlier, C, is at the University of Manchester and corresponds to a site with its own server. The information contained on it is purely library-related. Outliers A and B of Figure 3 correspond to outliers A and B of Figure 1, i.e. the larger sites contain more resources. Outlier D in Figure 3 is part of the unbroken section of the histogram in Figure 1 (there is another site containing more resources that is within the unbroken section of Figure 3).

The mean size of an academic library web site is around 3Mb. The bars within Figure 2 have width 2000Kb, which indicates that almost half of the site sizes are within the range 0-2000Kb (0-2Mb). The site containing the least content (consisting of one page of HTML) had a total size of just over 4Kb and corresponded to a server at Roehampton Institute London.

The entry points of the smallest five sites are shown in Figure A6-4.

Figure A6-4 - The Five Smallest Sites

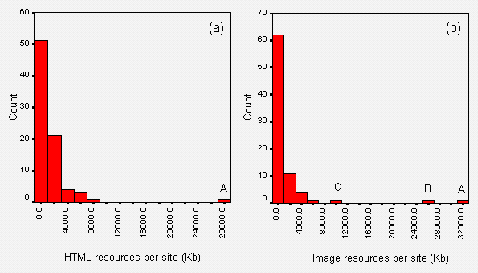

Figure A6-5 shows the HTML and image components of Figure A6-3.

The mean size of the HTML content of a site is around 3411Kb. We found a range from 1.5Kb to 28Mb. More than half of the sites contain under 2Mb of HTML.

Note that the image distribution is more broken than the HTML distribution suggesting that sites are more characterisable in their image size profiles than HTML size profiles. The mean total amount of image data per site is around 1.5Mb and a majority contain under 2Mb of image data. We encountered a range from 0Kb (i.e. containing no images under the entry-point path), of which there were 8 cases, to 31Mb.

The HTML size outlier (Figure 3a label A) does not correspond to any of the image size outliers (Figure A6-3b labels A-C). The correlation coefficient for the two sets of sizes is 28% (a fairly mild correlation). The furthest two image outliers (B and C) correspond to the outliers A and B of Figure A6-2. A preliminary inspection also indicates that bars to the right in Figure A6-3b tend also to be to the right in Figure A6-2. The HTML outlier corresponds to outlier B in Figure A6-2, but to none of the image outliers. We can conclude that the larger sites overall tend to contain a larger image content.

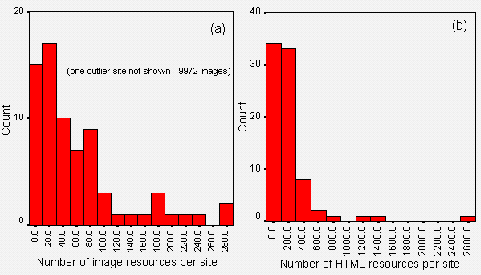

Figure A6-6 shows the HTML and image components of Figure A6-1.

There are, on average, 217 pages of HTML and 196 images per site (skewed by a couple of sites with many images - the standard deviation is 1162). Over 90% of sites have less than 400 pages of HTML and all but five sites have less than 200 images.

The mean size of an academic library HTML document is 6.5Kb (with standard deviation 4Kb). The distribution is nearly symmetric between 0Kb and 9Kb (the full range is 0-22Kb) and the modal value with intervals of width 1000 bytes is the range 3,500-4,500 bytes.

The mean size of an image from an academic library web site is 15Kb (with standard deviation 22Kb). The distribution decrements unbroken from 0-60,000 bytes (0-59Kb) and then becomes broken up. The modal value with intervals of size 10,000 bytes is the interval 0-10,000 bytes (0-10Kb).

Figure A6-7 shows a list of percentage correlation coefficients between counts of resources within a site and site size.

Figure A6-7 - Percentage Correlation between Measures of Resource Sizes

From Figure A6-7, we can see that there is a high correlation - 91% - between the number of HTML documents within a site and the total file size of HTML resources for that site. This seems logical, however it is interesting to compare the analogous case for image resources which is lower at 77%. These percentages imply that HTML resources within a site tend to be more bounded in terms of their size than the image resources. We can also see that the size of all image data correlates quite highly with the total size of a site (86%) and that the analogous metric for HTML is lower at 73%. This would imply that the total size of a site is more dependent on its image content an its HTML content (images are usually bigger). It is interesting to note that there is a relatively weak correlation between the number of image resources and number of HTML resources (averaged over all the sites looked at). This could imply that most pages do not fit into a standard template, however multiply referenced images within a site are indexed only once. See HTML analysis below for a more in-depth look at images.

An academic library web page contains on average 0.5 of an image, with a standard deviation of 1.33. On average, almost all HTML documents include less than 2 images. Since each index was indexed only once as it is found, this figure could be misleading. However, since client-side caching will cache each image this figure could represent the total downloaded resources.

Given the means calculated above, the mean size of an academic library web page complete with inline images is 11Kb.

Use of Hyperlinks

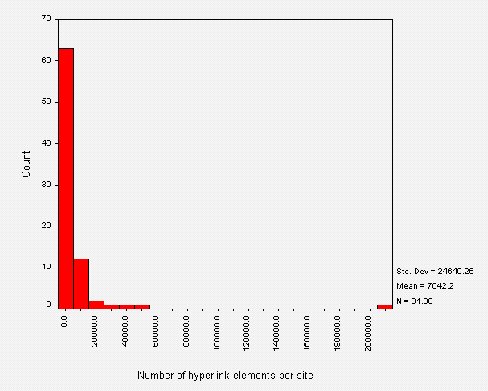

The HTML elements which provide hyperlinking (A and AREA) were extracted for analysis. Figure A6-8 shows the distribution of hyperlink elements per site.

The outlier is the server at Aston University and so corresponds to outlier B in Figure A6-3 and this skews the mean. On average, around 99% of HTML documents within an academic library site will contain the HTML elements that provide hyperlinking. Figure A6-9 shows the distribution of mean number of hyperlinks per document.

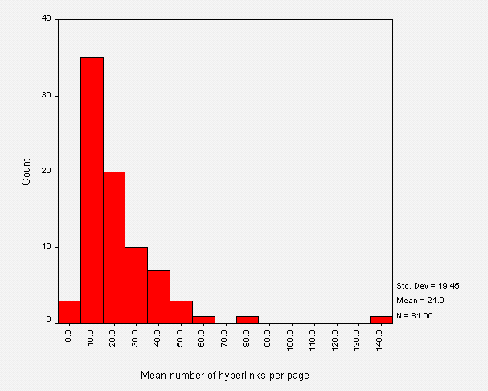

The mean number of hyperlink elements per document is about 22 and the most frequent the interval 5-15 hyperlinks.

The URLs referenced in the hyperlinks were also profiled. For those URLs followed by the robot (i.e. within the site and under the entry-point path) the mean number of characters in a path is 25. More generally, an average 38% (with standard deviation 21%) of hyperlink URLs were qualified with http://. The distribution of this is approximately symmetric about 35% (the modal value); on average 1% of these URLs contained # and 1% contained ?. For those that were not http:// prefixed, around 2% contained # and under 1% contained ?.

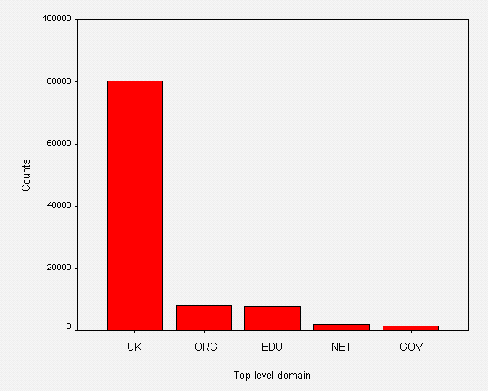

The Internet addresses used in the URLs were analysed. We extracted the server name and performed a reverse DNS lookup for IP addresses. The text to the right of the final '.' within the result was used to determine the domain of the server. Figure A6-10 shows the top five domains.

With the approach that the UK domain is geographically within the UK and that packets are not routed via another country, the chart indicates that this web community will generate traffic mostly within the UK. This may be significant when transatlantic bandwidth is charged for.

HTML Elements and Technologies

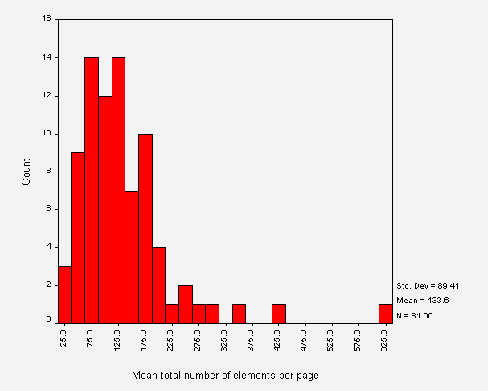

The distribution of mean total number of elements per page of HTML is shown in Figure A6-11.

The mean number of elements per page is around 134.

Interestingly the furthest outlier in Figure A6-11 does not correspond to any of the site size outliers in Figure A6-3, endorsing the earlier idea that the outliers of Figure A6-3 tend to be as a result of images. It does in fact correspond to the 8000 bar in Figure A6-5a. This site contains the greatest number of elements per page (on average) but this does not make it the site with the most HTML. However, the correlation coefficient between the mean total number of elements per page of HTML and the total site HTML content is 98%.

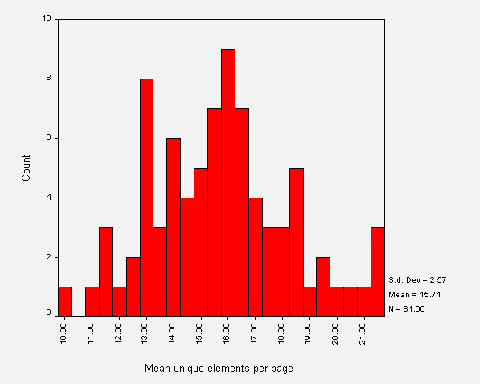

Figure A6-12 shows the mean number of unique elements per page of HTML.

Comparing to Figure A6-11, we see that the mean of the average number of elements per page is around 16 which is also the modal value. Note that the outlier in Figure 11 has no representation in Figure A6-12. The distribution in Figure A6-12 is more symmetric and approximately normal than that of Figure A6-11. This indicates that the number of unique elements per page is likely to be bounded. In the future it will be interesting to compare a case of XML.

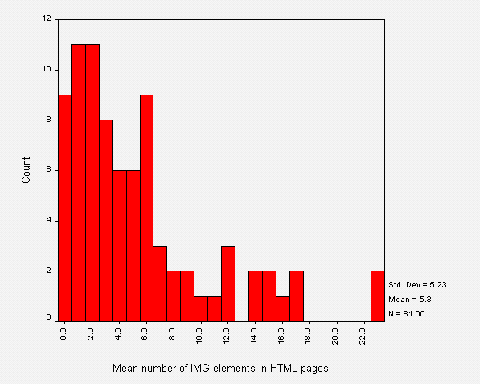

In contrast to the previous calculation on the mean number of images per page we also counted the number of image tags per page. Figure A6-13 shows the distribution of the mean number of images per page per site.

Figure A6-13 characterises individual sites in their overall use of the <IMG> element. We can see that the average number of images over all sites is around 5. There is variation, but sites seem to stick within bounds (as seen by the small number of bars of height 1 count). The most frequent number of <IMG> elements per page is between 0.5 and 2.5.

These figures contrast with the previous calculation that there is, on average, 0.5 of an image corresponding to each page. Since the first analysis was based on number of image resources, rather than number of tags, we could deduce that image replication accounts for an average of almost 5 images per page. Client-side caching of images could therefore result in saving 75Kb of download data.

From our previous conclusions of image sizes and total size of site we might guess that the right outlier in Figure A6-13 is one of the larger sites, since the larger sites are dominated by large image resources. This is not, in fact, the case and we conclude that this outlier includes the same images a number of times. This could suggest that the pages are written within a standard template.

Note that these figures are averages across each site - there is variation within each site. The page with the most <IMG> tags across all site contained 499 and this site corresponds to the largest outlier of Figure A6-3. The mean maximum across all sites is 23.

Each page of HTML retrieved was validated against an HTML 3.2 DTD using nsgmls [2] and the output stored. Only 12% of HTML pages validated with no errors. Although some sites contained compliant HTML documents, no site contained only compliant documents.

Within each HTML element, the following event handlers were looked for: onBlur, onChange, onClick, onFocus, onLoad, onMouseOver, onSelect, onSubmit and onUnload. 22% of sites used event handlers to some extent. The findings are shown in Figure A6-14.

Figure A6-14 - Event Handlers Found within HTML Documents

Further analysis shows that 22% of sites use event handlers.

Figure 14 shows that no use was made of the onBlur, onFocus or onUnload handlers. The most popular event-handler was onMouseover with 1013 occurrences over 11 sites. Figure 10 shows that this event-handler is used multiply on pages.

21% of sites (17 sites) made some use of the <SCRIPT> element. Where this tag contained attributes it was invariably language=JavaScript or language=JavaScript1.1.

Only one of the analysed referenced a Java applet with the <APPLET> element. There were no cases of technologies being included with the <EMBED> element or the<OBJECT> element.

Use of the <META> element was analysed. We specifically looked for the attributes shown in Figure A6-15 (case insensitively and accounting for the use of single and/or double quotes).

Figure A6-15 - <META> Element Attributes Searched For

The <META> element applications are not mutually exclusive (this is illustrated in Figure A6-15). We found that 40% of sites used no search-engine type metadata within their whole site, 27% included no Generator and 35% included no Content-type. A small number of sites used Refresh (7%), DC (6%), Reply-To (1%) and PICS (1%).

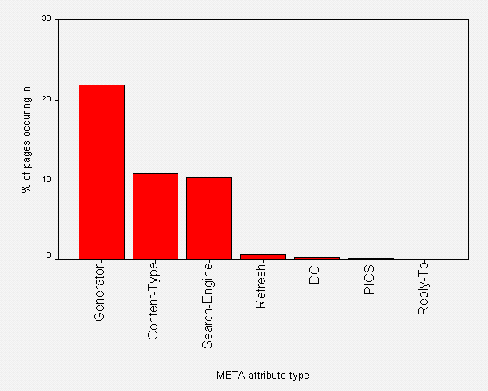

Figure A6-16 shows the percentage of all pages using various <META> attributes.

72% of sites (59) made some use of the Generator attribute, and across these sites Generator appears in 38% of pages. 61% (49) used Search-engine type metadata which occurred across these sites in 28% of pages. 57 (46) used Content-Type across 24% of their pages. Refresh was used in 4% of sites (6) and across these sites was used in 4% of pages. Dublin Core was used by 6% of sites (5) and was used within 5% of the pages of these sites. PICS was used by 1% of sites (1 - EHCHE).

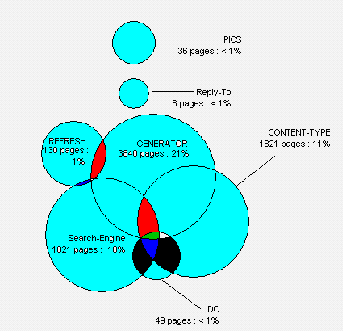

Figure A6-17 shows how pages simultaneously use the <META> element.

HTTP Header Analysis

All HTTP headers are recorded by the robot. For this analysis we looked at the server header, various caching headers and the HTTP-version.

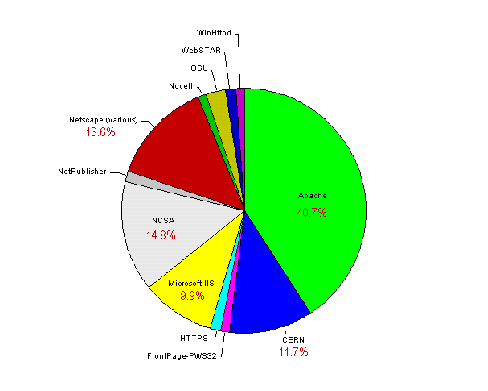

Figure A6-18 shows a chart of the servers encountered.

Apache is most popular by a large margin, which probably suggests that Unix is the most popular operating system (we found nothing within the headers to suggest that it was Apache on another operating system).

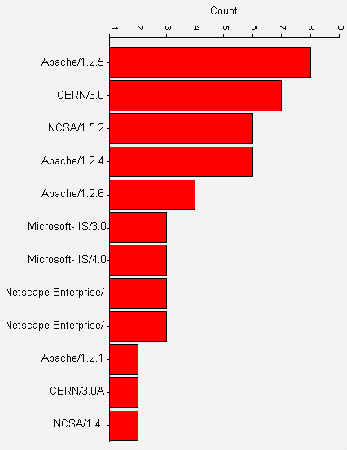

The categories shown in Figure A6-19 represent supersets of the servers (the server name). The server field also contains a version number and any extensions, such as FrontPage extensions. Figure A6-19 shows the fully qualified server field for that occurred more than once.

The multiple Netscape-Enterprise bars refer to Netscape-Enterprise 2.01 and Netscape-Enterprise 3.0 (we also noticed individual cases of 3.0J and 3.0F which are not included).

Only Apache had extra information other than version and included UUOnline-2.0, mod_perl, PHP-FI-2.0 and FrontPage/v3.0.x.

There was no indication in any of the server headers as to the platform/operating system that the server runs on other than the fact that some servers only run on certain platforms (e.g. Microsoft IIS). We can infer the potential use of HTTP/1.0 or HTTP/1.1 from the servers used.

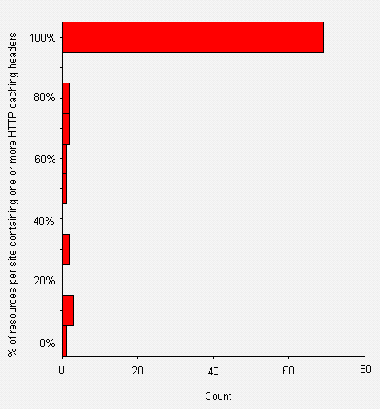

The HTTP caching headers Etag, Last-modified and any header of the form Expir* were looked for. Figure A6-20 shows the percentage of resources (images and HTML documents) per site that contained one or more of these headers.

Figure A6-20 shows that a majority of sites include one or more of the above headers. A closer examination reveals that 36% of sites have more than one such header in their HTML and a fraction more have more than one in their image headers. There doesn't appear to be any great bias in attaching caching headers to HTML or image resources. Although 37% of sites has slightly differing ratios of Cachable HTML/Total HTML to Cachable images/Total image, the mean difference across sites is only 0.1%. This is probably related to the high use of apache, which automatically includes some caching headers.

Errors

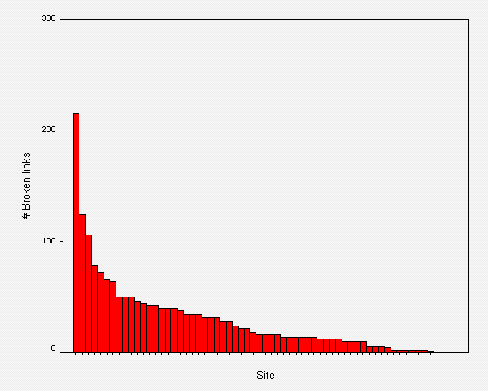

We encountered 1,151 client errors other than broken links (these include bad requests, unauthorized and forbidden). There were 935 broken links across the community (error code 404) spread over 59 sites. The distribution is shown in Figure A6-21. Note the tendency, as the number of broken links decrease, for the actual number of broken links between sites to become similar.

The first few sites with the largest number of broken links do not correspond to the largest sites.

The sites that appeared within the input file but not in the final analysis were either dropped, due to dynamic content which confused the robot, or else at the time of crawling the entry-point could not be contacted.

References

1 Alphabetically Sorted List of UK HE Campus Information Services, NISS
<URL: http://www.niss.ac.uk/education/hesites/cwis.html >
